A helmet is one of the most important safety gear for riders. It may look simple from the outside, but it is made of several important parts that work together to protect your head and keep you comfortable while riding. In this article, we’ll explore the parts of a motorcycle helmet and understand their functions with the help of a labeled diagram.
List Of Helmet Parts With Names
- Outer Shell
- Top Vent
- Inner Sun Visor
- Visor (Face Shield)
- Breath Guard
- Front Vent
- Chin Guard
- Base Gasket
- Shield Ratchet
- Retention System / Chin Strap
- Double D-Ring
- EPS Impact Liner
- Inner Lining
- Comfort Padding
- Cheek Pads
- Quick-Release Buckle
- Neck Roll

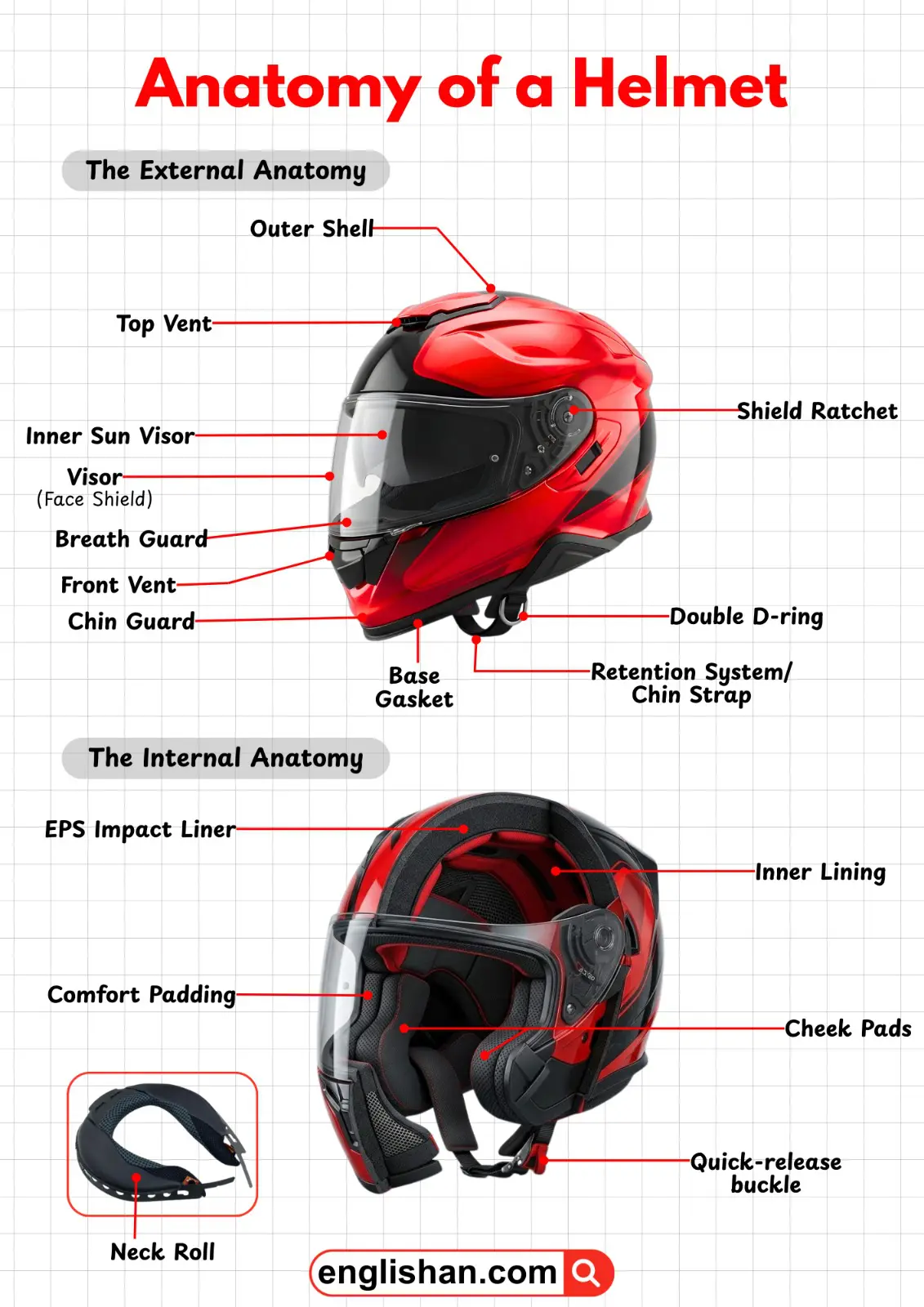

Helmet Parts Diagram With Names
It is a carefully engineered piece of safety equipment made up of several protective layers and components that work together to protect the rider’s head. The outer shell forms the strong external layer that spreads the force of an impact, while the EPS impact liner inside absorbs shock to reduce injury. Features such as the visor, vents, and chin guard improve visibility, airflow, and facial protection during rides. Inside the helmet, comfort padding, cheek pads, and the inner lining provide a snug and comfortable fit. Additional parts like the chin strap, double D-ring, and buckle keep the helmet securely in place, ensuring stability and safety while riding.

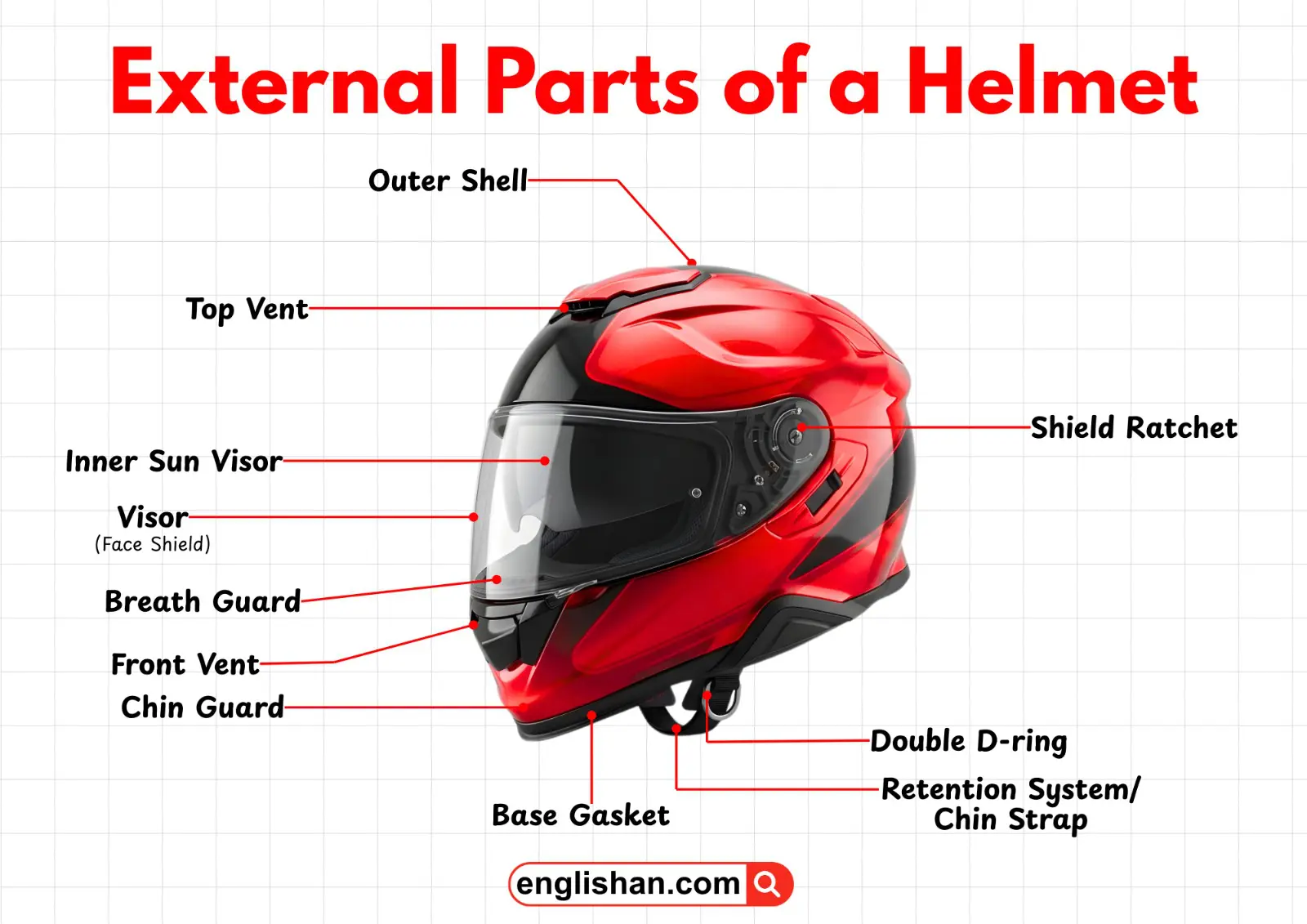

External Parts of a Helmet
Outer Shell
The outer shell is the hard exterior layer. It is usually made from materials like polycarbonate, fiberglass, or carbon fiber. Its main function is to distribute the force of an impact and protect the inner layers of the helmet.
Top Vent
The top vent is located on the upper part and allows fresh air to enter. It helps improve airflow inside the helmet and keeps the rider cool during rides.
Inner Sun Visor
The inner sun visor is a tinted visor inside the helmet that helps reduce glare from sunlight. It improves visibility and protects the rider’s eyes from bright light.
Visor (Face Shield)
The visor, also known as the face shield, is the clear protective cover at the front. It protects the rider’s eyes and face from wind, dust, rain, and flying debris.
Breath Guard
The breath guard is a small component located near the nose area inside the helmet. It helps direct warm breath away from the visor to reduce fogging.
Front Vent
The front vent is usually located near the chin area. It allows air to flow into the helmet and helps maintain proper ventilation.
Chin Guard
The chin guard is the front protective section of a full-face helmet. It protects the rider’s jaw and chin and also improves the helmet’s overall strength.
Base Gasket
The base gasket is the rubber or padded edge around the bottom. It helps improve comfort and reduces wind noise while riding.
Shield Ratchet
The shield ratchet is the mechanism on the side that controls the visor movement. It allows the visor to open, close, and lock into different positions.
Retention System / Chin Strap
The retention system, or chin strap, secures the helmet firmly on the rider’s head. It ensures the helmet stays in place while riding or during an accident.
Double D-Ring
The double D-ring is a common fastening system used in many helmets. It uses two metal rings to tightly secure the chin strap for maximum safety.

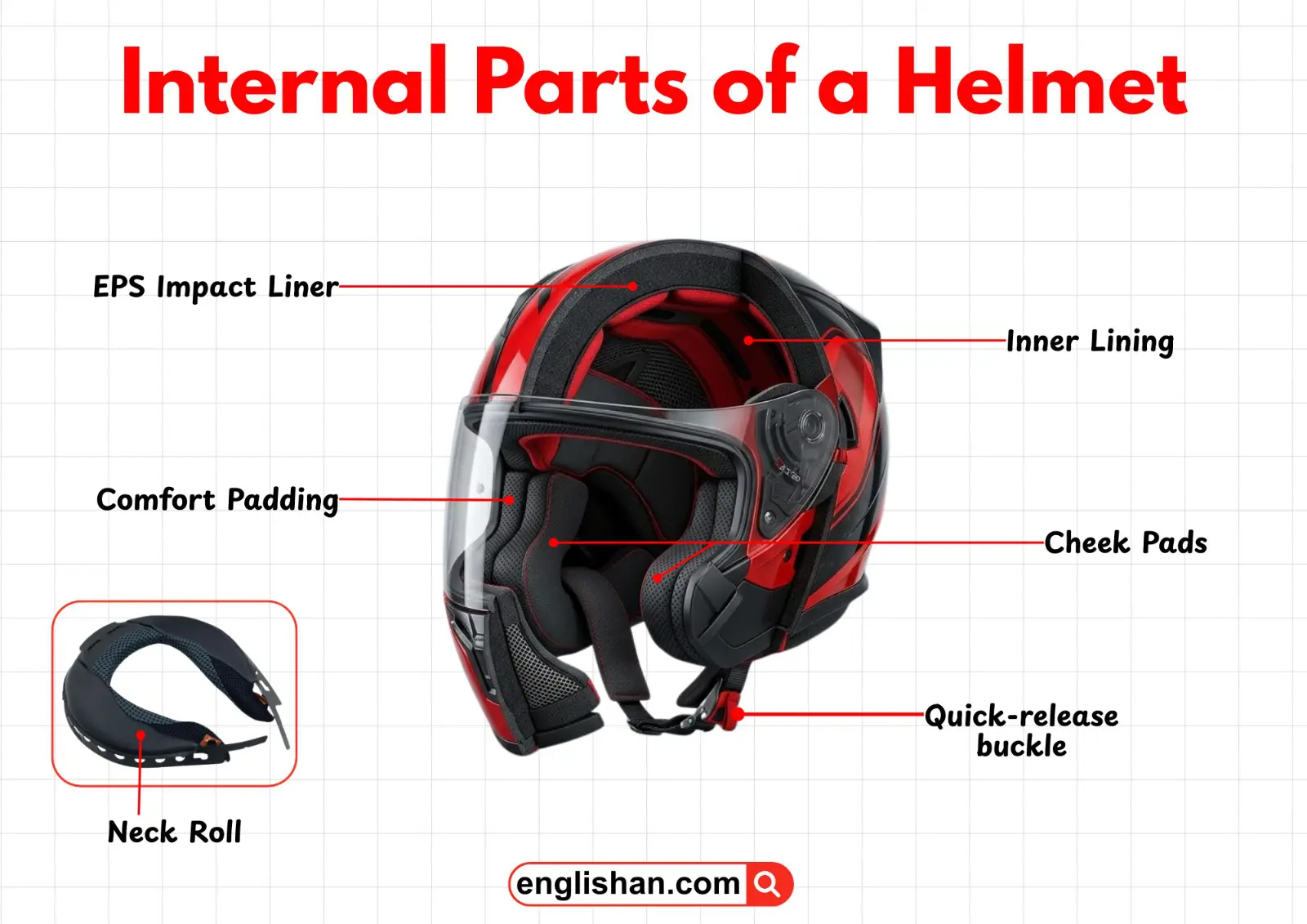

Internal Parts of a Helmet
EPS Impact Liner
The EPS impact liner is a thick foam layer inside the helmet that absorbs impact energy. It helps reduce the force transferred to the rider’s head during a crash.
Inner Lining
The inner lining is the soft fabric layer inside the helmet. It provides comfort and often helps absorb sweat and moisture.
Comfort Padding
Comfort padding consists of soft foam pads placed inside the helmet. These pads ensure a snug fit and provide cushioning for the rider’s head.
Cheek Pads
Cheek pads are padded sections on both sides of the helmet. They help keep the helmet stable and improve the overall fit and comfort.
Quick-Release Buckle
The quick-release buckle is a modern strap locking system. It allows riders to fasten and remove the helmet quickly and easily.
Neck Roll
The neck roll is the padded section at the bottom rear of the helmet. It improves comfort, reduces wind noise, and helps seal the helmet around the neck.
Key Takeaways
A motorcycle helmet is made up of several important parts that work together to protect the rider’s head. The outer shell and EPS liner provide the main impact protection, while the visor, vents, and chin guard improve visibility, airflow, and safety. Inside the helmet, the inner lining, comfort padding, and cheek pads ensure a comfortable and secure fit. The chin strap and fastening system keep the helmet firmly in place. Together, all these components make a helmet an essential piece of safety gear for every rider.
